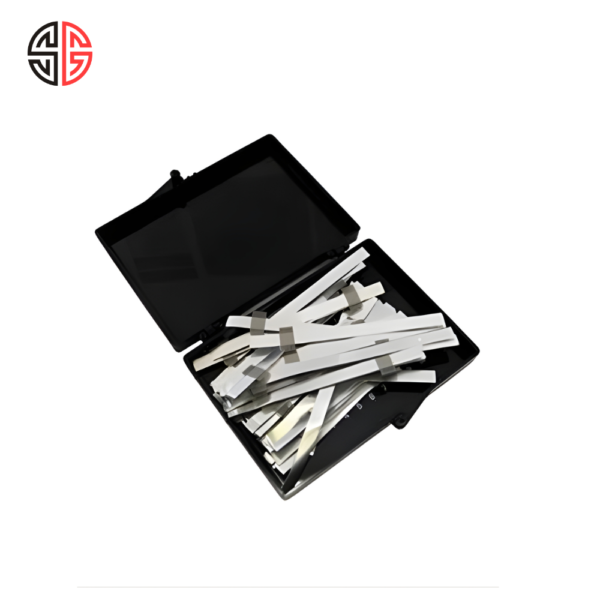

Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, Width: 4 mm
Categories:

Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, Width: 4 mm

$0

Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, Width: 4 mm

SKU:NG08BE0301
Shipping:Calculated at Checkout
€55.00


100 pcs/55 €
250 pcs/112 €
500 pcs/210 €

Please contact us for quotes on larger quantities !!!

Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell

Width: 4 mm

Technical Properties:

Material Nickel 99.99%, Adhesive Polymer Tape on the tab allows for immediate hot sealing
Length 57 mm
Width 4 mm
Thickness 0.09 mm
Max. Loading Current 3A
Net Weight 160 mg/pcs
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
– Soft type heat-sealing blade (Blade with rubber)
– 180-200 °C for upper blade
– 160-180 °C for lower blade
– 40 PSI (0.3 Mpa)
– 3 seconds heating time

Applications:

4 mm Wide Nickel Tabs for use as the Negative Terminal of Polymer Li-ion Batteries
